Roland Quality Rock Staday

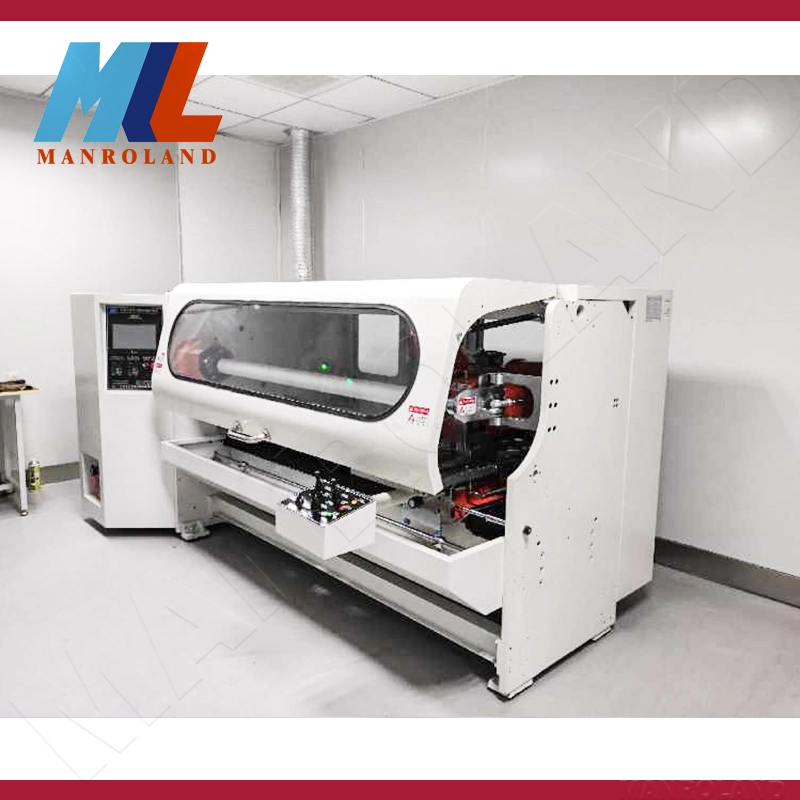

<H> RQ-1300/1600 Single-axis Automatic cutting table with Protective Cover<H>
Rq-1300/1600 Automatic Coil Material, Double-Sided Tape Cutting Table with Protective.



Product Parameters
Cutting width1580mm
Cutting effective width0.8-1300mm
Outer diameter of paper tube75.76.77.78mm
Maximum cutting diameter320mm
Maximum cutting speed34cuts/min
Cutting table speed0-1400rpm
Motor power of main engine4KW
Power of cutter motor2.2KW
Angle motorIcan57
Cutting accuracy+/- 0.1mm
Power supply380V 50HZ 3PHASE
Cutting toolsRound knife
Air pressure air source5MP
Machine size2920mm*1300mm*1450mm/3220mm*1300mm*1450mm
Machine weight1500KG/1700KG

Product features
This machine is suitable for cutting double-sided adhesive tape ,making paper,
OPP,optical film,PET,electrical tape,hot stamping paper,PC,black and white
tape backing paper and non-adhesive products.


Machine  detail feature
Rq-1300/1600 Automatic Coil Material, Double-Sided Tape Cutting Table with Protective.
Rq-1300/1600 Automatic Coil Material, Double-Sided Tape Cutting Table with Protective.
Rq-1300/1600 Automatic Coil Material, Double-Sided Tape Cutting Table with Protective.
Rq-1300/1600 Automatic Coil Material, Double-Sided Tape Cutting Table with Protective.
Rq-1300/1600 Automatic Coil Material, Double-Sided Tape Cutting Table with Protective.

Rq-1300/1600 Automatic Coil Material, Double-Sided Tape Cutting Table with Protective.
Rq-1300/1600 Automatic Coil Material, Double-Sided Tape Cutting Table with Protective.
Rq-1300/1600 Automatic Coil Material, Double-Sided Tape Cutting Table with Protective.
Rq-1300/1600 Automatic Coil Material, Double-Sided Tape Cutting Table with Protective.




Operation principle
Raw materials are rewinding or slitting from the traction main machine to the slitting mechanism.

Main components of the machine
This machine is composed of the rectifying and unwinding mechanism, slitting mechanism, winding mechanism, driving mechanism and electrical control.

Characteristic
The machine is composed of computer control, single ultrasonic tracking and deviation correction system, automatic adjustment of winding tension and linkage motor and mechanical structure. The unwinding tension is controlled by magnetic powder brake and automatic tension. The winder adopts the air expanding shaft, which can automatically rise and fall with the help of automatic air pressure. The frequency converter controls the working speed of the whole machine and is equipped with an automatic meter counting device. The utility model has the advantages of smooth incision, neat end face of winding, convenient for subsequent processing, etc.

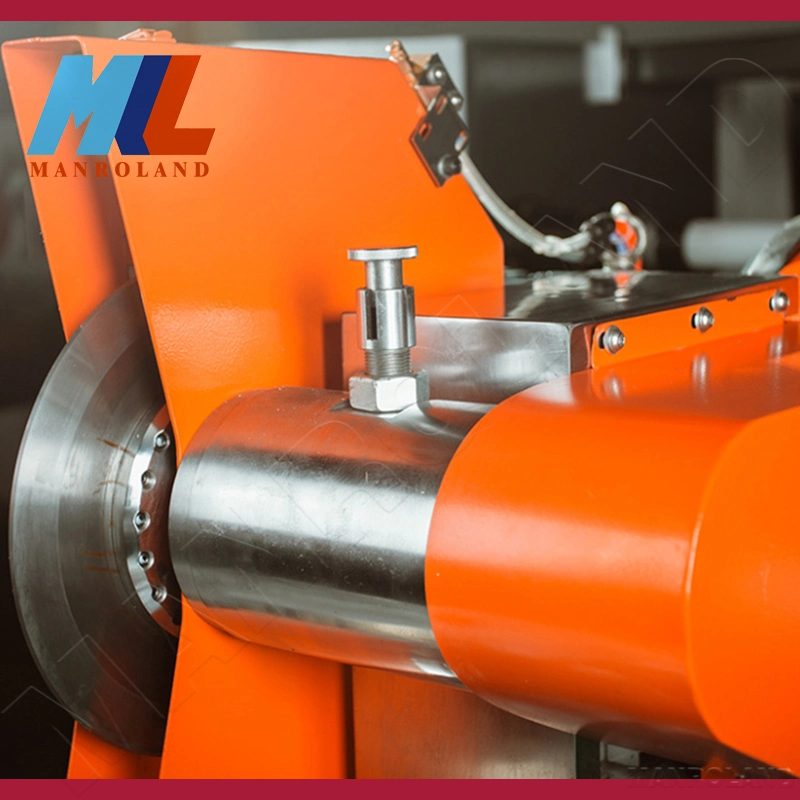

Slitting mechanism
The mechanism adopts the high-precision disc disc disc cutter of cemented carbide, with neat cut and long service life. The upper and lower cutter shafts are cut by adjusting the width, and the speed of the upper and lower cutter shafts is matched by gears. Rotate the hand wheel to lower the knife, and rotate the handle to realize automatic knife leaning.

Transmission mechanism
The frequency converter is used to control the operation of the main motor. The speed isconvenient and fast, and the speed adjustment is too soft and stable.

Main electrical appliances
Adopt human-machine interface, PLC centralized control, advanced technology, Human machine interface, display and set the host speed and winding length, set the unwinding and winding tension and taper Centralized electric cabinet control, beautiful and easy to operate. PLC built-in meter counting function, real-time linear speed, meter recording automatic stop function (with deceleration stop function, meter recording basically has no error)

About us
Dongguan city ManRoLan procession machinery Co., Ltd. Our company integrate produce, sales, R&D as one automatic Industry enterprise.
Our company have more than 30 employees, include 5 technicians, 5 senior development engineers.
O
ur mainly products include: high procession slitting machine, full Automatic Cutting machine, laminating machine, etc.
A
lso customize personal customize service.
Our products combined with Germany,
 Sweden, Japan etc.
Country's high procession technology and quality, more prizes from our clients our products widely use in electronic, IT, Packaging, Medicine, Auto, Printing etc industries.


Our products have the following advantages:
1.Strong expansibility, upgrade system or custom personalize design.
2.Modular design, more convenience and powerful.
3.Machine parts characters, use the high quality raw material, long using lifetime and high stability.
4.Machine process, according international standard process. Quenching tempering internal, external procession grinding.
5.CNC, wine cutting, milling, drilling, ensured each part procession And durable.


Rq-1300/1600 Automatic Coil Material, Double-Sided Tape Cutting Table with Protective.
